Part number: TI-816R

• Availability:
• Price:
• Description:

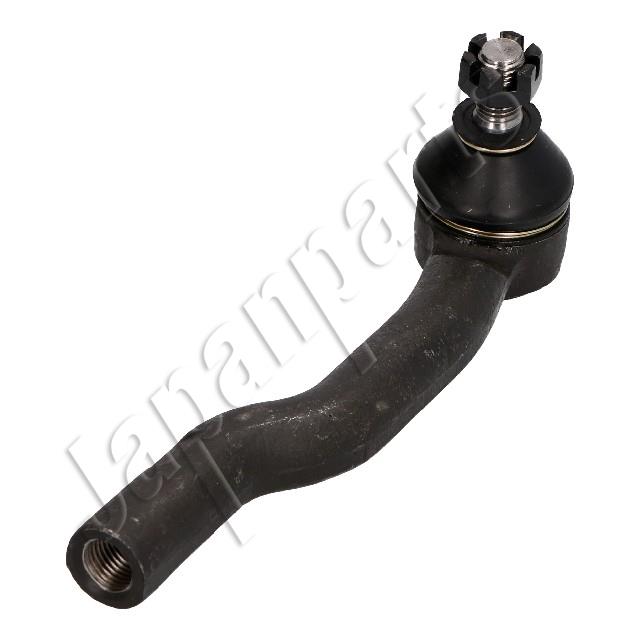

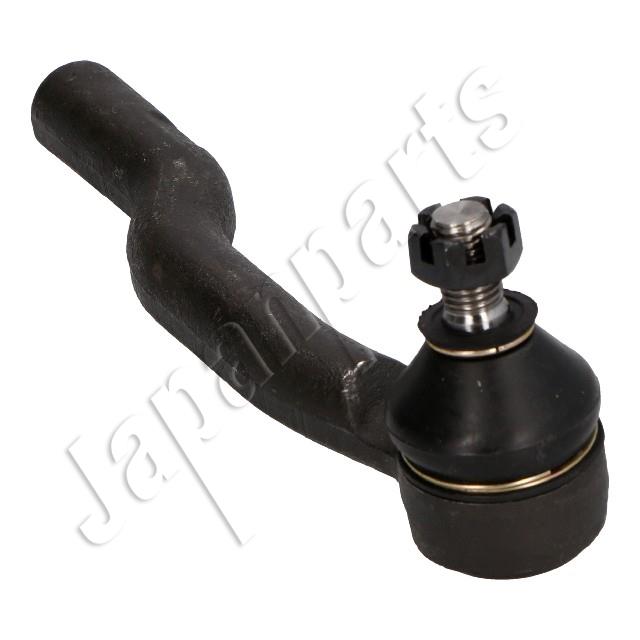

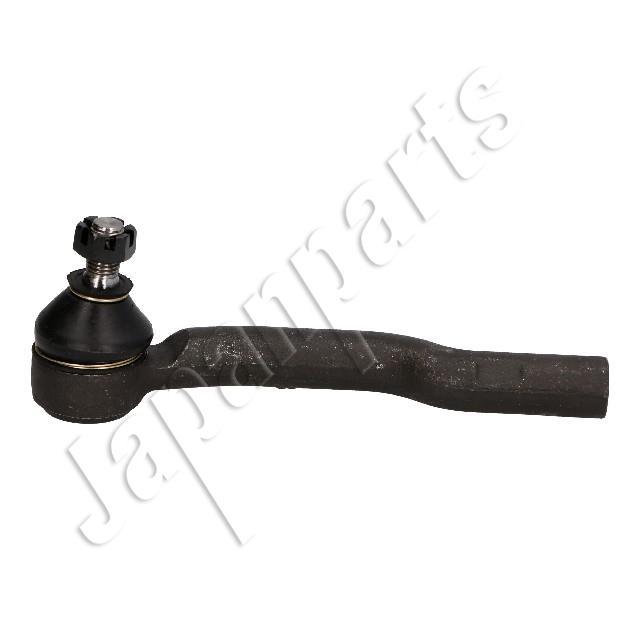

  Tie Rod End
• Replaced:

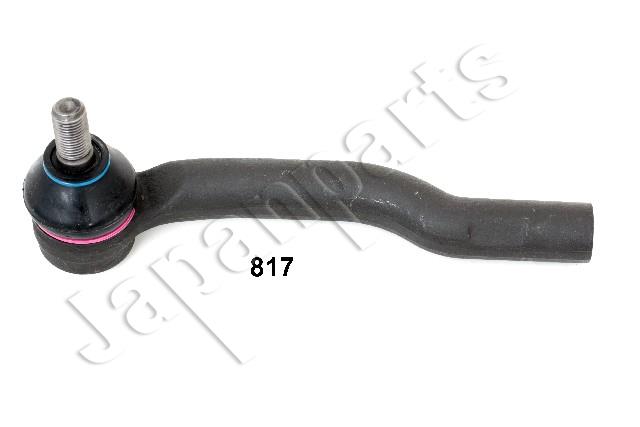

  TI-817
• Fitting Position
  Right Front
• Overall Length [mm]
  194
• Internal Thread [mm]
  14 X 1,5
• Thread Length [mm]
  45
• Overall Height [mm]
  71
• Fitted Diameter [mm]
  12,5
• External Thread [mm]
  12 X 1,25
• Length 2 [mm]
  180
• Barcode:
  8033001876550
• WARRANTY INFO:
  2 YEARS

Previous Next

OEM Codes

• 4881067D00 (SUZUKI)
• 4881065D01000 (SUZUKI)
• 4881065D00 (SUZUKI)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
SUZUKI GRAND VITARA I (FT, GT) 1.6	69	1590	4	03-1998/07-2003	G16B	Benzina
SUZUKI GRAND VITARA I (FT, GT) 1.6 4x4 (SQ 416)	71	1590	4	09-2003/09-2005		Benzina
SUZUKI GRAND VITARA I (FT, GT) 2.0	94	1995	4	03-1998/07-2003	J20A	Benzina
SUZUKI GRAND VITARA I (FT, GT) 2.0 HDI 110	80	1997	4	07-2001/09-2005	RHW	Diesel
SUZUKI GRAND VITARA I (FT, GT) 2.0 HDI 110	80	1997	4	02-2001/12-2003	RHZ	Diesel
SUZUKI GRAND VITARA I (FT, GT) 2.0 TD 4 ruote motrici	63	1998	4	04-2000/09-2005	RFM	Diesel
SUZUKI GRAND VITARA I (FT, GT) 2.0 TD Intercooler	64	1998	4	03-1998/07-2003	RF	Diesel
SUZUKI GRAND VITARA I (FT, GT) 2.5 V6 24V	116	2493	6	04-2001/07-2003	H 25 A	Benzina
SUZUKI GRAND VITARA I (FT, GT) 2.5 V6 24V (FT)	106	2493	6	04-1998/07-2003	H 25 A	Benzina
SUZUKI GRAND VITARA I (FT, GT) 2.7	135	2736	6	09-2003/08-2006	H 27 A	Benzina
SUZUKI GRAND VITARA I (FT, GT) 2.7 XL-7	127	2736	6	09-2001/07-2003	H 27 A	Benzina
SUZUKI GRAND VITARA I (FT, GT) 2.7 XL-7	135	2736	6	04-2003/07-2003	H 27 A	Benzina
SUZUKI GRAND VITARA I Cabriolet (GT) 1.6 4x4	69	1590	4	03-1998/07-2003		Benzina
SUZUKI GRAND VITARA I Cabriolet (GT) 2.0 4x4	94	1995	4	03-1998/07-2003		Benzina
SUZUKI GRAND VITARA II (JT) 1.9 TD	55	0		01-1998/ -		Diesel
