Part number: TA-226C

• Availability:
• Price:
• Description:

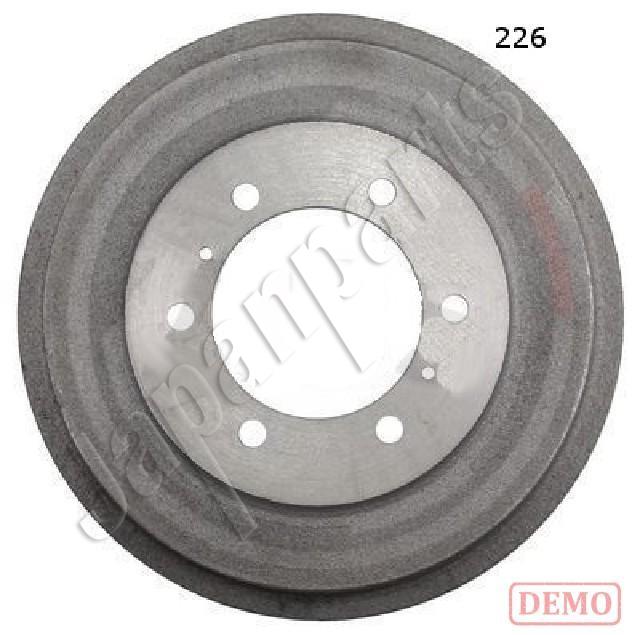

  Brake Drum
• Replaced:
  TA-226
• Fitting Position
  Rear Axle
• Inner Brake Drum Height [mm]
  65
• Number of bores
  6
• Inner brake drum diameter [mm]
  270
• Surface
  Painted
• Total Br. Drum Height [mm]
  81
• Centering Diameter [mm]
  108
• Barcode:
  8052553583266
• WARRANTY INFO:
  2 YEARS

OEM Codes

• 4243126122 (TOYOTA)
• 4243126121 (TOYOTA)
• 4243126120 (TOYOTA)

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
TOYOTA HIACE IV Autobus (LH1_) 2.4 4WD (RCH18_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.4 TD 4WD (H18/28)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D-4D 4WD	75	2494	4	11-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.5 D4d 4x4	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Autobus (LH1_) 2.7 (RCH13_, RCH23_)	105	2694	4	04-1998/11-2001	3RZ-FE	Benzina
TOYOTA HIACE IV Autobus (LH1_) 2.7 4WD (RCH19_)	105	2694	4	04-1998/08-2006	3RZ-FE	Benzina
TOYOTA HIACE IV Furgonato (H100) 2.5 D-4D 4x4	65	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 4WD (RCH18_, RCH28_)	85	2438	4	08-1995/04-1998	2RZ-E	Benzina
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.4 TD 4WD (LXH18_, LXH28_)	66	2446	4	08-1995/08-2001	2L-T	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D-4D	75	2494	4	08-2001/08-2006	2KD-FTV	Diesel
TOYOTA HIACE IV Furgonato (LXH1_, RZH1_, LH1_) 2.5 D4d 4x4	86	2494	4	09-2006/12-2012	2KD-FTV	Diesel
