Search By Code DI-814C

Part number: DI-814C

Availability:
Price:
Description:

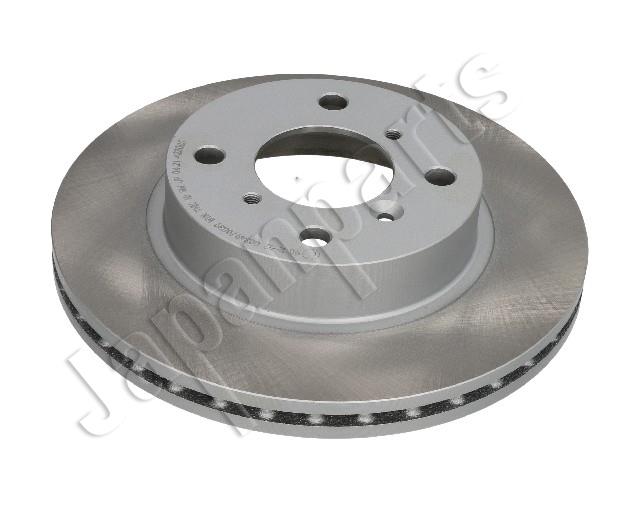

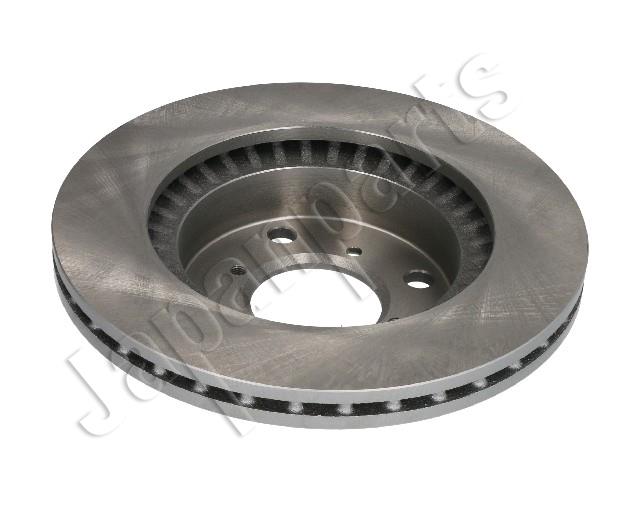

Brake Disc
Replaced:

DI-814
Fitting Position
Front Axle
Bolt Hole Circle Ø [mm]
60
Height [mm]
50
Outer Diameter [mm]
234,5
Brake Disc Thickness [mm]
20
Minimum thickness [mm]
18,5
Number of bores
4
Brake Disc Type
Vented
Test Mark
ECE R90 APPROVED
Surface
Painted
for OE number
5531161G02
Barcode:
8052553560083
WARRANTY INFO:
2 YEARS

82/DI-814C_1.jpg

82/DI-814C_2.jpg

Applications

Description	KW	CCM	Cylinders	from/to	Engine code	power supply
SUZUKI BALENO (EG) 1.3	52	1298	4	09-1996/05-2002	G13BA	Benzina

SUZUKI BALENO (EG) 1.3 i 16V	63	1298	4	07-1995/05-2002	G13BB	Benzina

SUZUKI BALENO (EG) 1.6 i 16V	72	1590	4	07-1995/05-2002	G16B	Benzina

SUZUKI BALENO (EG) 1.6 i 16V 4x4	72	1590	4	07-1995/05-2002	G16B	Benzina

SUZUKI BALENO (EG) 1.9 TD	55	1905	4	04-1998/05-2002		Diesel

SUZUKI BALENO 2 volumi /Coda spiovente (EG) 1.3	52	1298	4	09-1996/05-2002	G13BA	Benzina

SUZUKI BALENO 2 volumi /Coda spiovente (EG) 1.3 i 16V	63	1298	4	07-1995/05-2002	G13BB	Benzina

SUZUKI BALENO 2 volumi /Coda spiovente (EG) 1.6 i 16V	72	1590	4	07-1995/05-2002	G16B	Benzina

SUZUKI BALENO 2 volumi /Coda spiovente (EG) 1.6 i 16V 4x4	72	1590	4	07-1995/05-2002	G16B	Benzina

SUZUKI BALENO 2 volumi /Coda spiovente (EG) 1.9 TD	55	1905	4	04-1998/05-2002		Diesel

SUZUKI BALENO Station wagon (EG) 1.3 16V	63	1298	4	03-1997/05-2002	G13BB	Benzina

SUZUKI BALENO Station wagon (EG) 1.6 i 16V	72	1590	4	08-1996/05-2002	G16B	Benzina

SUZUKI BALENO Station wagon (EG) 1.6 i 16V 4x4	72	1590	4	08-1996/05-2002	G16B	Benzina

SUZUKI BALENO Station wagon (EG) 1.6 i 16V 4x4	73	1590	4	08-1996/05-2002	G16B	Benzina

SUZUKI BALENO Station wagon (EG) 1.9 TD	55	1905	4	04-1998/05-2002		Diesel
